One of the most critical aspects of an uninterruptible power supply (UPS) is its standby or back-up battery system, where extremely capacitors made by excellent supercapacitors manufacturers are now beginning to contribute.

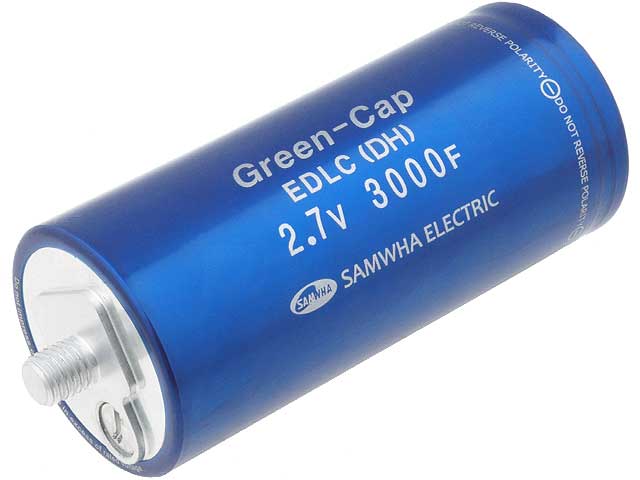

An incredibly capacitor resembles a regular capacitor other than that it supplies high capacitance in a tiny plan. Energy storage is using static cost instead of an electro-chemical process, integral in lead-acid uninterruptible power supply batteries. Using a voltage differential on the favorable and also adverse plates charges the super capacitor (this idea is similar to an electrical charge that accumulates when walking on a rug).
Their layout makes them perfect for small uninterruptible power supply installations whereby they are being utilised in favour of a battery set or to minimize the capacity for battery discharge throughout short-term mains power failings.
The quantity of power that can be kept relies on the active material made use of in the layout of a super capacitor. Potentially, it can attain as much as 30kW of stored energy.
An extremely capacitor (also described as electric dual layer capacitor, electrochemical dual layer capacitor or ultra capacitor) includes two electrodes built from a highly triggered carbon material, which may be woven. Whereas a normal capacitor consists of conductive aluminum foils as well as a dry separator, the extremely capacitor crosses into battery modern technology by utilizing unique electrodes and also some electrolyte. There are 3 sorts of electrode materials suitable for the incredibly capacitor: high surface triggered carbons, steel oxide and carrying out polymers. The high surface area electrode material, additionally called Dual Layer Capacitor (DLC), is least pricey to manufacture as well as is the most usual. It stores the power in the dual layer developed near the carbon electrode surface area.
The carbon activated electrodes offer a huge reticulated location upon which an active material such as Ruthenium Oxide is deposited. The material gives a huge area, for example, 1000 square meters per gram of material utilized. Cellulose paper with polymeric fibers to provide support is normally utilized as the separator in between the electrodes. Electrolyte is generally diluted Sulphuric Acid. Ruthenium Oxide is converted into Ruthenium Hydroxide by a chain reaction as well as this enables power to be kept.
To run at greater voltages, extremely capacitors made by great supercapacitors manufacturers are attached in collection. On a string of greater than 3 capacitors, voltage balancing is required to prevent any cell from reaching over-voltage.
Power within an extremely capacitor is rapidly offered – as well as this is just one of its greatest advantages. When combined to an existing battery collection, they can inhibit battery cycling for short-lived disturbances, which assists expand the working life of the collection. An extremely capacitor’s working life is commonly ten years (dual that of a typical UPS battery). They can additionally run over a large temperature level array (minus 30 to 45 degrees centigrade).
Various other Advantages
oVirtually limitless cycle life – can be cycled numerous times.
oLow insusceptibility – improves load handling when put in paralleled with a battery.
oRapid charging -super capacitors charge in secs.
oSimple fee methods – no full-charge discovery is required; no threat of overcharge.
oLinear discharge voltage avoids use of the complete power range.
oLow energy density – usually holds one-fifth to one-tenth the energy of an electrochemical battery.
oCells have low voltages – serial connections are required to obtain higher voltages. Voltage harmonizing is called for if greater than 3 capacitors are attached in collection.
oHigh self-discharge – the rate is considerably more than that of an electrochemical battery.
Whereas the electro-chemical battery provides a stable voltage in the usable energy range, the voltage of the incredibly capacitor is straight and also goes down uniformly from complete voltage to no volts. Because of this, it is incapable to deliver the full charge. If, for instance, a 6V battery is permitted to release to 4.5 V before the devices removes, the very capacitor reaches that limit within the very first quarter of the discharge cycle. The continuing to be power gets on a pointless voltage array. A DC-to-DC converter can correct this issue however such a regulator would certainly add costs and also present a 10 to 15 percent effectiveness loss.
The fee time of an incredibly capacitor is about 10 seconds. The capability to take in energy is, to a big degree, limited by the dimension of the charger. The fee characteristics resemble those of an electrochemical battery. The initial cost is really quick; the topping cost takes additional time. Arrangement has to be made to restrict current when billing an empty extremely capacitor.
In terms of charging method, the very capacitor resembles the lead-acid battery. Full cost takes place when a set voltage limit is gotten to. However unlike the electrochemical battery, the super capacitor does not require a full-charge detection circuit. Super capacitors made by excellent supercapacitors manufacturers take as much energy as needed. When full, they quit accepting charge. There is no risk of overcharge or ‘memory’.
Super capacitors made by great supercapacitors manufacturers like http://www.china-jinpei.com are relatively pricey in regards to price per watt. Some style engineers argue that the cash would certainly be better invested offering a larger battery by including extra cells. But the incredibly capacitor and chemical battery are not always in competition. They enhance one another.
